Starna cuvettes

Starna Scientific Ltd. in England has been supplying the people working in science and industry with glass and quartz cuvettes and spectroscopic reference materials since 1964.

According to the cooperation agreement between Starna and JASCO. the cuvette boxes (depending on stock availability) bear the words JASCO or Starna.

The cuvettes are manufactured in the United Kingdom.

The material quality of the cuvettes determines the wavelength range in which they are recommended for qualitative and quantitative measurements.
Material Mark Wavelength
[nm]
Optical Glass G 334 – 2500
Special Optical Glass SOG 320 – 2500
Quartz Spectrosil Q 190 – 2700
Quartz Suprasil 300 SX 190 – 3500



Optical path tolerance chart:

Material Optical wavelength
[mm]
Tolerance
[mm]
quartz 0.01 – 0.05 ± 0.002
quartz 0.1 – 0.4 ± 0.005
quartz 0.5 – 30 ± 0.01
quartz 40 – 100 ± 0.02
special optical glass 0.01 – 20 ± 0.01
special optical glass 30 – 100 ± 0.02
optical glass 10 – 30 ± 0.1
optical glass 40 – 100 ± 0.2

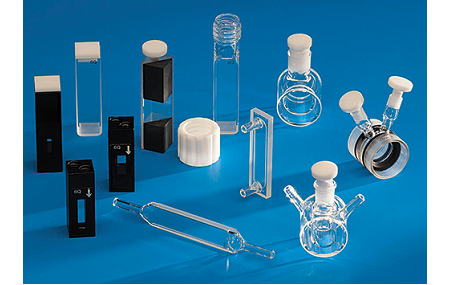

Below we provide a selection of the most common cuvette types and cuvettes. If you cannot find the product you are looking for on our website, please, do not hesitate to contact us.

Glass Cuvettes

Cuvettes with PTFE cover used only in the visible range
Code Type Optical path
[mm]
Dimensions
[mm]
Volume
[ml]
1/G/10 G 10 45 x 12.5 x 12.5 3.50
1/G/20 G 20 45 x 12.5 x 22.5 7.00
1/G/40 G 40 45 x 12.5 x 42.5 14.00
1/G/50 G 50 45 x 12.5 x 52.5 17.50

Special optical glass cuvettes

Cuvettes delivered with cover used from 320 nm
Code Type Optical path
[mm]
Dimensions
[mm]
Volume
[ml]
1/SOG/1 SOG 1 45 x 12.5 x 3.5 0.40
1/SOG/2 SOG 2 45 x 12.5 x 4.5 0.70
1/SOG/5 SOG 5 45 x 12.5 x 7.5 1.70
 1/SOG/10 SOG 10 45 x 12.5 x 12.5 3.50
1/SOG/20 SOG 20 45 x 12.5 x 22.5 7.00
1/SOG/40 SOG 40 45 x 12.5 x 42.5 14.00
1/SOG/50 SOG 50 45 x 12.5 x 52.5 17.50
1/SOG/100 SOG 100 45 x 12.5 x 102.5 35.00

Cuvettes delivered with stopper used from 320 nm

Code Type Optical path
[mm]
Dimensions
[mm]
Volume
[ml]
21/SOG/5 SOG 5 46 x 12.5 x 7.5 1.70
21/SOG/10 SOG 10 46 x 12.5 x 12.5 3.50
21/SOG/20 SOG 20 45 x 12.5 x 22.5 7.00
21/SOG/40 SOG 40 45 x 12.5 x 42.5 14.00
21/SOG/50 SOG 50 46 x 12.5 x 52.5 17.50

Quartz cuvettes

Cuvettes delivered with cover used in the UV-Vis range
Code Type Optical path
[mm]
Dimensions
[mm]
Volume
[ml]
1/Q/1 Q 1 45 x 12.5 x 3.5 0.40
1/Q/2 Q 2 45 x 12.5 x 4.5 0.70
1/Q/5 Q 5 45 x 12.5 x 7.5 1.70
1/Q/10 Q 10 45 x 12.5 x 12.5 3.50
1/Q/20 Q 20 45 x 12.5 x 22.5 7.00
1/Q/40 Q 40 45 x 12.5 x 42.5 14.00
1/Q/50 Q 50 45 x 12.5 x 52.5 17.50
1/Q/100 Q 100 45 x 12.5 x 102.5 35.00

Cuvettes delivered with stopper used in the UV-Vis range

Code Type Optical path
[mm]
Dimensions
[mm]
Volume
[ml]
21/Q/5 Q 5 46 x 12.5 x 7.5 1.70
21/Q/10 Q 10 46 x 12.5 x 12.5 3.50
21/Q/20 Q 20 45 x 12.5 x 22.5 7.00
21/Q/40 Q 40 45 x 12.5 x 42.5 14.00
21/Q/50 Q 50 46 x 12.5 x 52.5 17.50

Semi-micro and micro cuvettes

Tightened cuvettes with PTFE cover
Code Type Optical path
[mm]
Dimensions
[mm]
Volume
[ml]
9/SOG/10 SOG 10 45 x 12.5 x 12.5 1.40
9/Q/10 Q 10 45 x 12.5 x 12.5 1.40
18/SOG/10 SOG 10  45 x 12.5 x 12.5 0.70
18/Q/10 Q 10  45 x 12.5 x 12.5 0.70
18/B/Q/10 Q 10 45 x 12.5 x 12.5 0.70

Fluorescent cuvettes

Cuvettes with lid or stopper for fluorescence measurements
Code Type Optical path
[mm]
Dimensions
[mm]
Volume
[ml]
3/SOG/10 SOG 10 x 10 45 x 12.5 x 12.5 3.50
3/Q/10 Q 10 x 10 45 x 12.5 x 12.5 3.50
23/Q/10 Q 10 x 10  46 x 12.5 x 12.5 3.50
9-F/Q/10 Q 10 x 4 45 x 12.5 x 12.5 1.40
18-F/Q/10 Q 10 x 2 45 x 12.5 x 12.5 0.70



Cylindrical cuvettes

2-port cylindrical cuvettes
Code Type Optical path
[mm]
Dimensions
[mm]
Volume
[ml]
31/B/Q/0.1 Q 0.1 22 x 22.5 0.165
31/B/Q/0.2 Q 0.2 22 x 22.5 0.194
31/B/Q/0.5 Q 0.5 22 x 22.5 0.278
31/B/Q/1 Q 1 22 x 22.5 0.420

1-port cylindrical cuvettes

Code Type Optical path
[mm]
Dimensions
[mm]
Volume
[ml]
32/Q/1 Q 1 22 x 3.5 0.28
32/Q/2 Q 2 22 x 4.5 0.56
32/Q/5 Q 5 22 x 7.5 1.40
32/Q/10 Q 10 22 x 12.5 2.80
32/Q/20 Q 20 22 x 22.5 5.60

Jacketed water thermostattable cuvettes

Code Type Optical path
[mm]
Dimensions
[mm]
Volume
[ml]
65/Q/1 Q 1 22 x 20 0.849
65/Q/2 Q 2 22 x 20 0.962
65/Q/5 Q 5 22 x 20 1.300
65/Q/10 Q 10 22 x 12.5 0.825

Further cuvettes:

  • flow-through cuvettes for dissolution tests
  • flow-through cuvettes with micro and ultra-micro design
  • splitted cuvettes
  • demountable cuvettes
  • polarimetric cells
  • etc

Cuvette cleaning

The latest pharmacopoeic instructions require enhanced purity control of the cuvettes used for spectroscopic measurements. The Starna CellClean solution means great help for cleaning the cuvettes contaminated with hard-to-remove samples (e.g. biological samples, oils, waxes, etc.). CellClean is an acqueous based cleaner with a unique combination of purifying ingredients, which dissolves and decomposes the contaminants preparing the cuvettes for new measurements.

Reference materials (CRM)

Calibration standards with the appropriate certificates
Type Application Material Wavelength [nm]
RM-HG wavelength Holmium Oxide 242, 279, 288, 334, 361, 419, 446, 454, 460, 537, 638
RM-5D absorbance
0.25AU
Neutral Density Glass 440, 465, 546, 590, 635
RM-3N absorbance
0.5 AU
Neutral Density Glass 440, 465, 546, 590, 635
RM-1N absorbance
1.0 AU
Neutral Density Glass 440, 465, 546, 590, 635
RM-1N3N5DHG wavelength
absorbance
Calibration standard set: includes the RM-HG, RM-5D, RM-3N, RM-1N calibration standards

Further Certified Reference Materials:

Absorbance:

  • Nicotinic acid, concentration range: 6-60 mg/l in 0.1 M hydrochloric acid (210-260 nm)
  • Potassium dichromate (235-430 nm)
  • Starna Green (250-650 nm)
  • Deep UV Reference (190-220 nm)

Wavelength:

  • Holmium Oxide Liquid (240-650 nm)
  • Cerium oxide solution (Cerium Oxide Rare Earth liquid) (200-300 nm)
  • Didymium Oxide Liquid (290-870 nm)
  • Combined Holmium and Didymium Oxide Liquid (240 to 795 nm)
  • Starna Green (250-650 nm)
  • Holmium Oxide Glass Filter (Holmium Oxide Glass) (270-640 nm)
  • Starna Wide Wavelength Reference (335-1945 nm)
  • Deep UV Reference (190-220 nm)
  • Samarium Oxide Liquid (230-560 nm)

Scattered light:

  • scattered light cut-off filters – (NaNO2, acetone, KI, NaCl, KCl, Li2CO3) (175-385 nm)
  • scattered light cut-off filters – according to Filter Ratio (Mielenz) method (175-385 nm)
  • diffused light glass filters (220-440 nm)

Spectral resolution:

  • Toluene in Hexane (265-270 nm)
  • Toluene in Methanol (265-270 nm)
  • Benzene vapour (230-270 nm)

Please contact our office staff for Starna cuvettes and reference materials not listed here!
